Body Sculptors Gymnasium Case Study On Membership And Facility Management System

Question

Task: You are to perform an analysis and design of a “membership and facility management” system. You are required to submit:

i) Discuss the six core processes of the SDLC required to develop the membership and facility management system

ii) A Class Diagram for the entire membership and facility management system, showing:

• Attributes
• Custom methods
• Various relationships
• Association names
• Multiplicities
• Association Classes (if any)

iii) A use case diagram which models the actors and the use cases of the Manager schedules staff roster

iv) A use case diagram which models the actors and the use cases of the Member registers for class (just before the commencement of a class)

v) Develop PERT/CPM chart explaining the early and late start for each task. Identify the critical path and the total time to finish the project

Whenever you make assumptions, please state these clearly.

You will be marked on various aspects, including among other things:

• Completeness of analysis (thoroughness)
• Correctness of analysis – i.e. how much the analysis represents the described system.
• Use of notation – whether you correctly used the UML notations.
• Appropriate use of generalization/specialization (in class diagram)
• Appropriate use of aggregation/composition (in class diagram)
• Clearness of diagrams

Answer

Introduction
The body sculptors gymnasium case study explores member activities and membership are being monitored using computer-based information system in gymnasium. The major features being managed and handled using the information system include staff management, rostering, facilities and equipment, and member services. The aim of this report is to analyse the system and its requirements those could be used for developing the strategies for a successful system. This body sculptors gymnasium case study covers SDLC approaches required for the project, system designs of membership and rostering, and project management steps required for building the entire project.

SDLC for Membership and Facility Management System
What are six core processes of SDLC covered on this body sculptors gymnasium case study?

1. Analysing the problem and getting approval from the head of the project: the primary step is to perform preliminary investigation on the problems related to both the selected sectors of the gymnasium system. It includes possible benefits, anticipated cost, tangible and intangible outcomes, and system deliverables (Alshamrani and Bahattab 2015). The approval is the approval of the management on the identified previous objectives of the system. Executive management and the key stakeholders identified on the body sculptors gymnasium case study need to be involved in this process and there must be proper description of the final decisions, plan approval, and the budget of the system development.

2. Plan and monitoring project: the planning plays crucial role in paving the path of how the staffs and the key stakeholders will be following for the entire project (Ihsan and Kadir 2018). While executing the project, monitoring will be the most necessary aspect identified on the body sculptors gymnasium case study assuring that the steps being taken are going in positive direction and will result positively.

3. Discovering and understanding the details: this process helps in identifying the needs and requirements of the system and the users on how and what will be required for assuring that the users will be getting expected benefits (Encheva 2016). The details will allow the developer in identifying the best outcome of the project.

4. Design System components: The processes identified on the body sculptors gymnasium case study can be described as the solution for the identified problems and the design of the system that will be meeting the needs and requirements of the end users. This process will help in defining the functioning and operating of the information system.

5. Building, testing, and integrating the system: The practical activities including coding, tests of the codes with the expected output, and the integration of the whole system will be processes in this step (Dennis, Wixom and Roth 2018). This step will be allowing the developer in developing the entire system that could be deployed for the users.

6. Completion of the system, testing and deploying in the real world: this process emphasizes on the finalization of the integrated system and then testing in the real world and thereafter, deploying in the real world for the users. The final product discussed on the body sculptors gymnasium case study can be used by the users.

Class Diagram

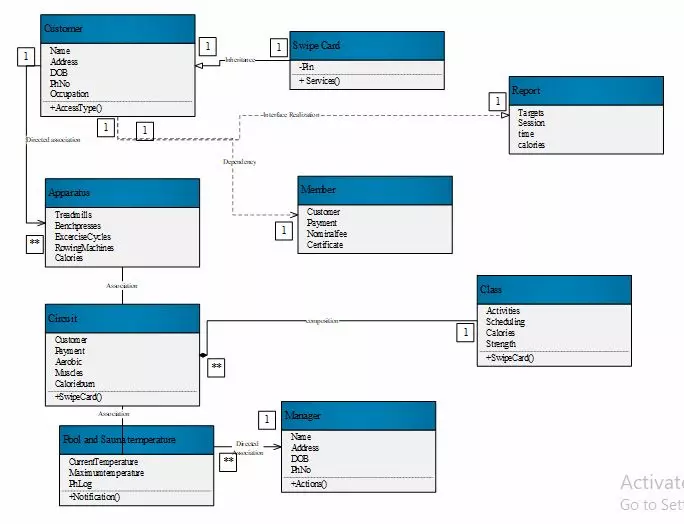

Figure 1: Class Diagram
(Source: Created by Author)

How to use Use Case Diagram of Staff Rostering for body sculptors gymnasium case study?

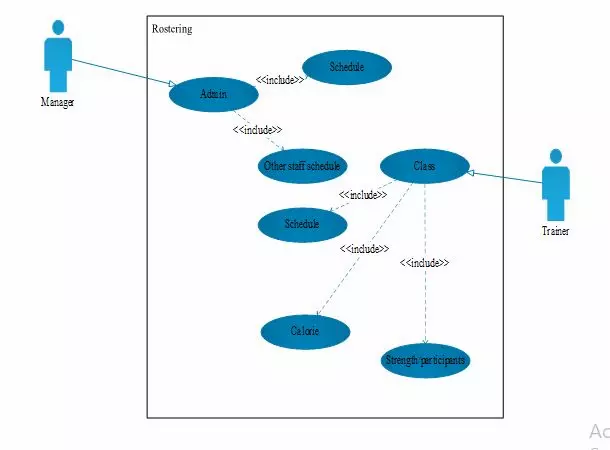

Figure 2: Use Case for Rostering
(Source: Created by Author)

Use Case Diagram of Member Registration

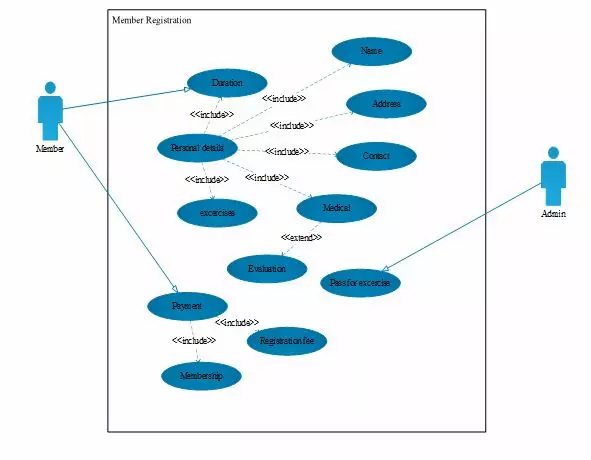

Figure 3: Use case for registration
(Source: Global.toyota.com 2019)

CPM Using MS Project for body sculptors gymnasium case study
List of activities and sub-activities on

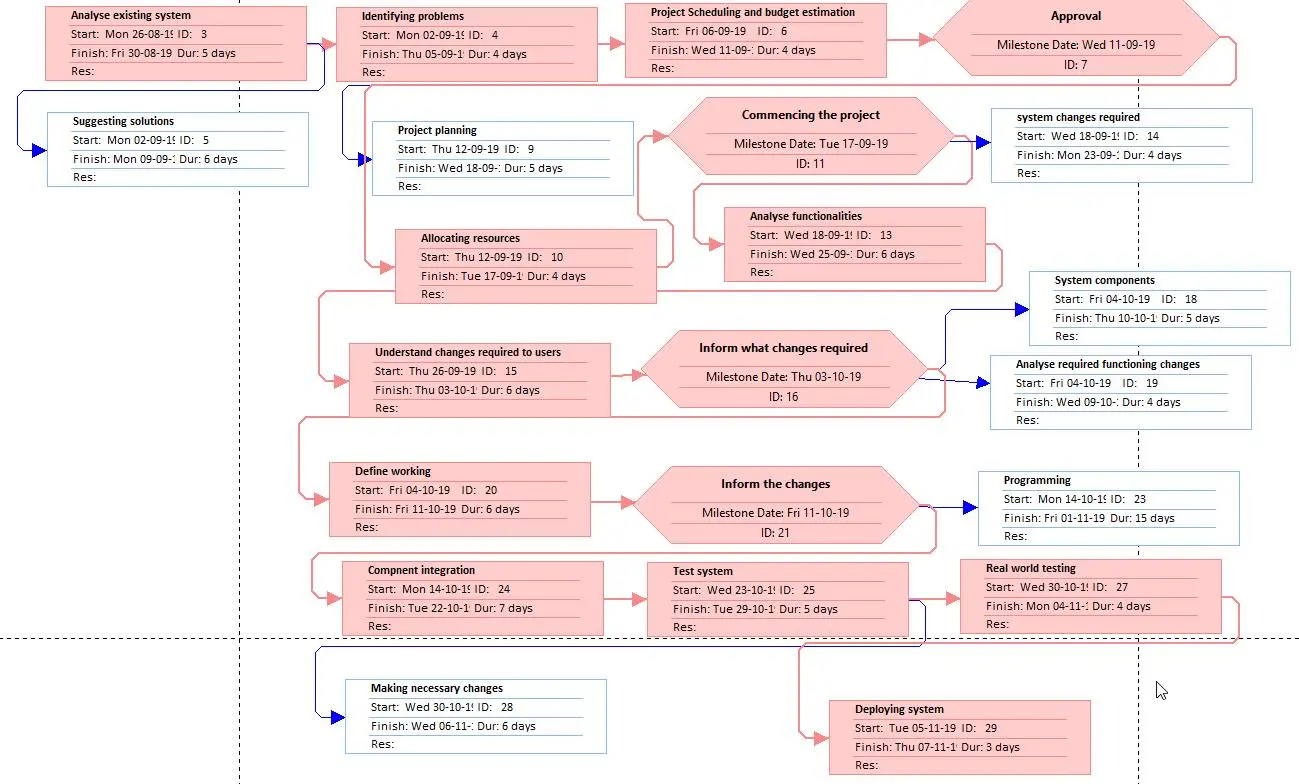

Figure 4: Critical Path (CPM)
(Source: Created by Author using MS Project)

What is the Total time required to complete the body sculptors gymnasium case study?

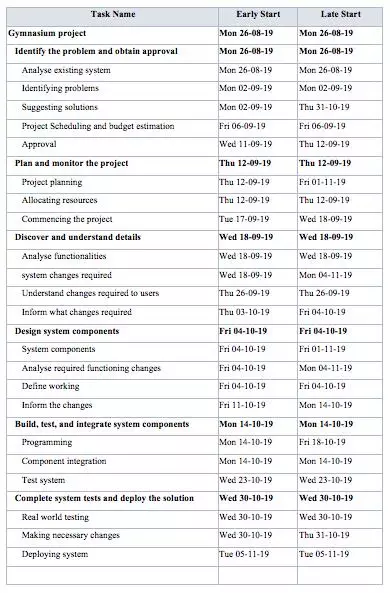

Based on the critical path as displayed in the red in above image, the minimum time taking for the project is 54 days. Early and late start for each of the activity can be represented as following:

It can be concluded that the body sculptors gymnasium case study being defined will be meeting the needs and requirements of the system changes required in the existing computer information sysystem of the gymnasium. The above-mentioned body sculptors gymnasium case study defined the six core processes of the SDLC required for the required changes. The mentioned steps will be allowing the developer in successfully implementing the changes required for the users as per their needs and requirements. Body sculptors gymnasium case study assignments are being prepared by our IT management assignment help experts from top universities which let us to provide you a reliable assignment help online service.
